MODELDEF Help [Solved]

[Sarah]

Models seems to be getting a bit popular

I put together a lovely model, which would be my first after following a Misfit Model tutorial I found. So number 2 I guess. Currently it takes 6 images to texture the model. I found out the hard way that you can't put more than one skin in the MODELDEF per model. It's an MD3 since I also discovered that an MD2 would require me to use only 1 texture. I've got it to display in the test map with one skin, but that isn't right, of course.

So here's my questions:

1. Do I need the .qc file for this model of mine with 6 textures?
1a. If I do, where does that file go and how might it need to look?
1b. If I do, how would that affect my MODELDEF?

(I had more questions, but those were about getting the darned thing to display and I realized my frameindex wasn't 0 )

This is my MODELDEF(if anyone wants a reference):

---

Code: Select all

MODEL BATTERY
{
	Path "Models/BATTERY"
	Model 0 "BATTERY.md3"
	Skin 0 "BCore.png"

	FrameIndex BATT A 0 1
}

This is the QC file I wrote after searching the forum a bit:

---

Code: Select all

$model "models/BATTERY/BATTERY.md3"
$frames 1 30
$flags 0
$numskins 0
$mesh "models/BATTERY/BCore"
$skin "models/BATTERY/BCore.png"
$flags 0
$mesh "models/BATTERY/Black"
$skin "models/BATTERY/Black.png"
$flags 0
$mesh "models/BATTERY/Blue"
$skin "models/BATTERY/Blue.png"
$flags 0
$mesh "models/BATTERY/Red"
$skin "models/BATTERY/Red.png"
$flags 0
$mesh "models/BATTERY/Panels"
$skin "models/BATTERY/Panels.png"
$flags 0
$mesh "models/BATTERY/Terminal"
$skin "models/BATTERY/Terminal.png"
$flags 0

[Nash]

To force GZDoom to use per surface textures, you exclude the "skin" property from your MODELDEF

Code: Select all

MODEL BATTERY
{
   Path "Models/BATTERY"
   Model 0 "BATTERY.md3"

   FrameIndex BATT A 0 1
}

I don't know how Misfit works, but with Milkshape 3D, the .QC file is only needed when you are exporting your model so the program can bake the data into the .md3.

Alternatively, you can skip using .qc files, and set the texture paths post-export using npherno's md3 compiler. See the following tutorial:

http://www.tabun.nl/tutorials/md3skinpath_tutorial/

EDIT: The tutorial tells you to select all... obviously if your model is multi-part, you would have to do this per surface (AKA object AKA group) in the tool... use the drop-down box at the top of the program, select a surface, type in the skin path, then hit Enter to confirm.

[Sarah]

Wow, I just searched my own post. Thanks for replying quick, Nash. I actually discovered that you can set the texture paths in Misfit. I had to do that originally for export from .mm3d to .md3, I just forgot and then didn't reset the paths to work in a .pk3 setup. But your link reminded me, so not all was in vain!

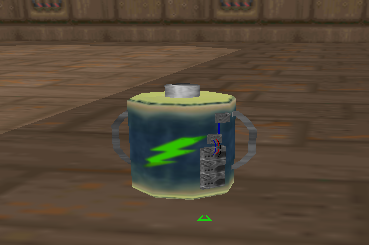

Check it out!

Yeah that's supposed to be a battery :P


[Nash]

Good to know, just one thing though... the UVs on your battery are kinda stretchy...

[Sarah]

Where exactly are you talking? Could be the cross resolution squishing, I didn't think it looked too stretched when I was running gzdoom. I noticed it looks shorter in the screenshot than in the map, although that might be a trick on my eyes.
