GZDoom Builder 2.3

[MaxED]

In the map test.wad there are several stacked barrels, yet doing a Map Analysis (F4) no errors are detected.
Each barrel seems to have a different Thing number, so I am a bit puzzeled why the stacked things were not
detected.

"Check Stuck Things" Map Analysis mode uses "error" game configuration property. Valid values are 0 (Don't check this thing), 1 (Check if this thing is inside of a sector and not stuck in a linedef) and 2 (same as 1 + check if this thing is stuck in another thing). Previously, error = 2 was only set for monsters and player starts (for performance reasons, I suppose).

Changed in r2001: "error" property is set to 2 for (hopefully) all blocking things and also for blocking DECORATE actors.

[MaxED]

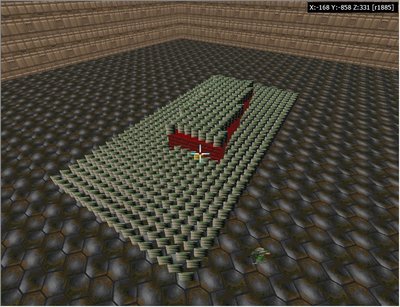

In test2.wad I've rotated that sector so that it is no longer locked to the grid and when played the barrels become possessed.
https://www.dropbox.com/s/zqxmkb547ifhghm/test2.wad

Works fine on my side in both GZDoom and GZDB...

---

[DaveDemons]

Hmmm, try this
https://www.dropbox.com/s/4rqycg8hgkzdfwj/test3.wad


I just noticed that the floor texture on that sector is invisible as well...

I reduced the latest test map to only contain one single barrel so that I could actually see something in the debugger.

The cause of this glitch is that ZDoom needs to emulate some strangeness of Doom's original thing spawning code that had its own ideas of what's supposed to be 'front' and 'back' of a line. And that code gets hopelessly confused with your mass of extremely short lines due to loss of precision in the following two lines:

Code: Select all

left = FixedMul ( node->dy>>FRACBITS , dx );
right = FixedMul ( dy , node->dx>>FRACBITS );

Replacing those with floating point math cures the problem.

[MaxED]

Hmmm, try this
https://www.dropbox.com/s/4rqycg8hgkzdfwj/test3.wad
I just noticed that the floor texture on that sector is invisible as well...

Yet again, this map works fine in GZDB's Visual Mode, so you should repost this in the Bugs board.

[Graf Zahl]

The bug has been fixed already.

[MaxED]

Newsflash! (r2005)
1. Tag Range plugin: custom increment can now be set.
2. Tag Range plugin: tags can be set in relative mode (when this mode is enabled, generated values are added to existing tags instead of replacing them).

---


3. Tag Range plugin: "0" tag and tags of selected map elements are no longer considered as "already used".

[Rychead84]

Hello
I'm trying to make a 3d floor lift up in GZDoom in Doom Format. I've read some of the scripts used on the net but I can't activate anything.
I've typed a script that goes like this :

#include "zcommon.acs"

script 2 (void)
{
FloorAndCeiling_RaiseByValue(132, 10, 500);
tagwait(132);
delay(60);
FloorAndCeiling_LowerByValue(132, 20, -500);
tagwait(132);

}

Do I have to use an action like "277 - S1 FraggleScript Execute (GZDoom only!)" and maybe place a map spot for Fragglescript?
It seems like there's no "triggering" when trying to make it happen.

I'd be grateful if you could help me make it

Johnny

[MaxED]

This thread is about the level editor itself (e.g. bugs, feature requests and other stuff directly related to the GZDB), not about editing maps using it.
Consider either posting in The "How do I..." Thread, or making a new thread in the Editing board

[MaxED]

I'm trying to make a 3d floor lift up in GZDoom in Doom Format.

ZDoom Wiki is your friend.

FloorAndCeiling_LowerByValue(132, 20, -500);

Also, this here code will raise floor and ceiling by 500 map units.

---

Also, what's with you people always using the most convoluted ways to make stuff?

[Amuscaria]

All versions of GZdoom Builder just stopped working for me for an unknown reason. They were working just fine a couple of weeks ago ( was using r1689). I thought maybe the windows updated without my permission so I downloaded the latest (r2002) from SVN. Still the same error. I get the following errors:



followed by



It doesn't show anything else. It does this for all versions, which I just noticed today. Not really sure what is going on. My Windows has been giving me some problems for the past few weeks. But updating the program usually solved it. Not in this instance.

[MaxED]

Hm... Looks like it's somehow related to the "Arial" font... Make sure it's available on your system.

[Amuscaria]

It's still in my fonts folder. Haven't touched it. Guess I can just use my laptop for my Doom modding.

[Kappes Buur]

All versions of GZdoom Builder just stopped working for me for an unknown reason.......

The top line is truncated, what else did/does it say for "Reason: ..."


Post your log file, so one can see what your computer was up to.

[Amuscaria]

I can't expand the non-fatal UI error pop-up to see what's after "aria" So I can't say for sure. That's the only thing it says, followed by "Builder.exe has stopped working"

This is all my log says:

---

GZDoom Builder 1.14.0.2002 startup
Application path: C:/GZDBuilder
Temporary path: C:\Users\Eric Ou\AppData\Local\Temp\
Local settings path: C:\Users\Eric Ou\AppData\Local\Doom Builder
Command-line arguments: 0
Loading program configuration...
Program configuration is outdated, new configuration will be copied for local user
Starting action manager...
Binding static action methods for class General...
Loading main interface window...

[VGA]

You should be able to see the full title bar in the windows process manager (ctrl-shift-esc)
